TECHNOLOGY

In pursuit of a beautiful finish for attractive packaging

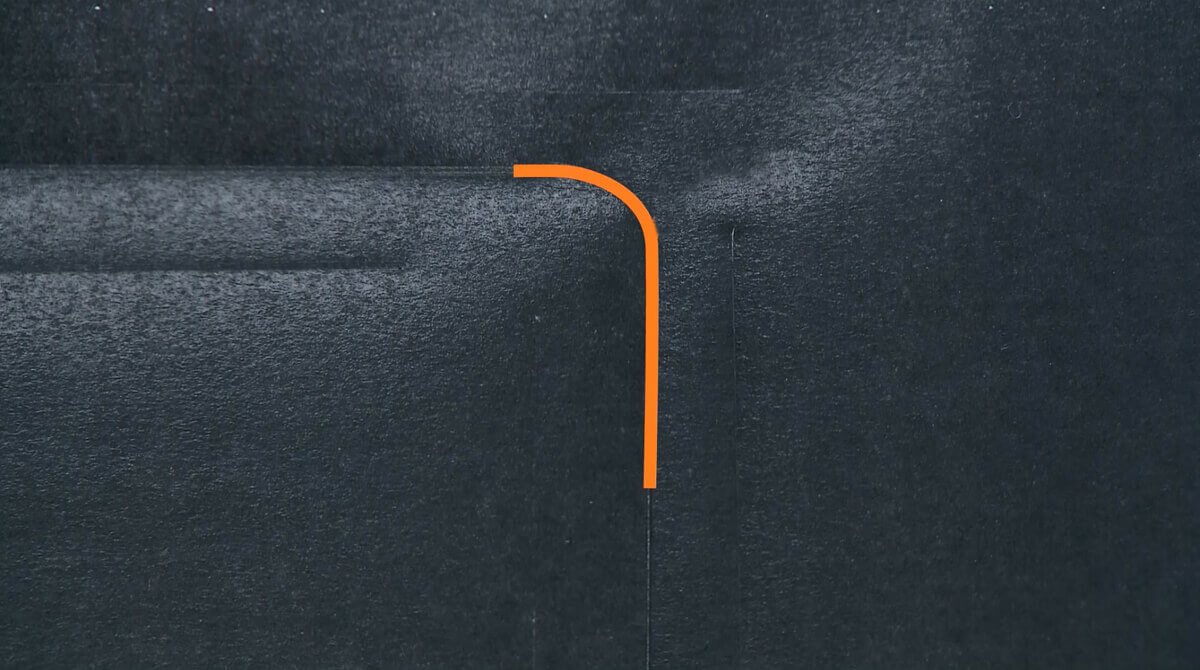

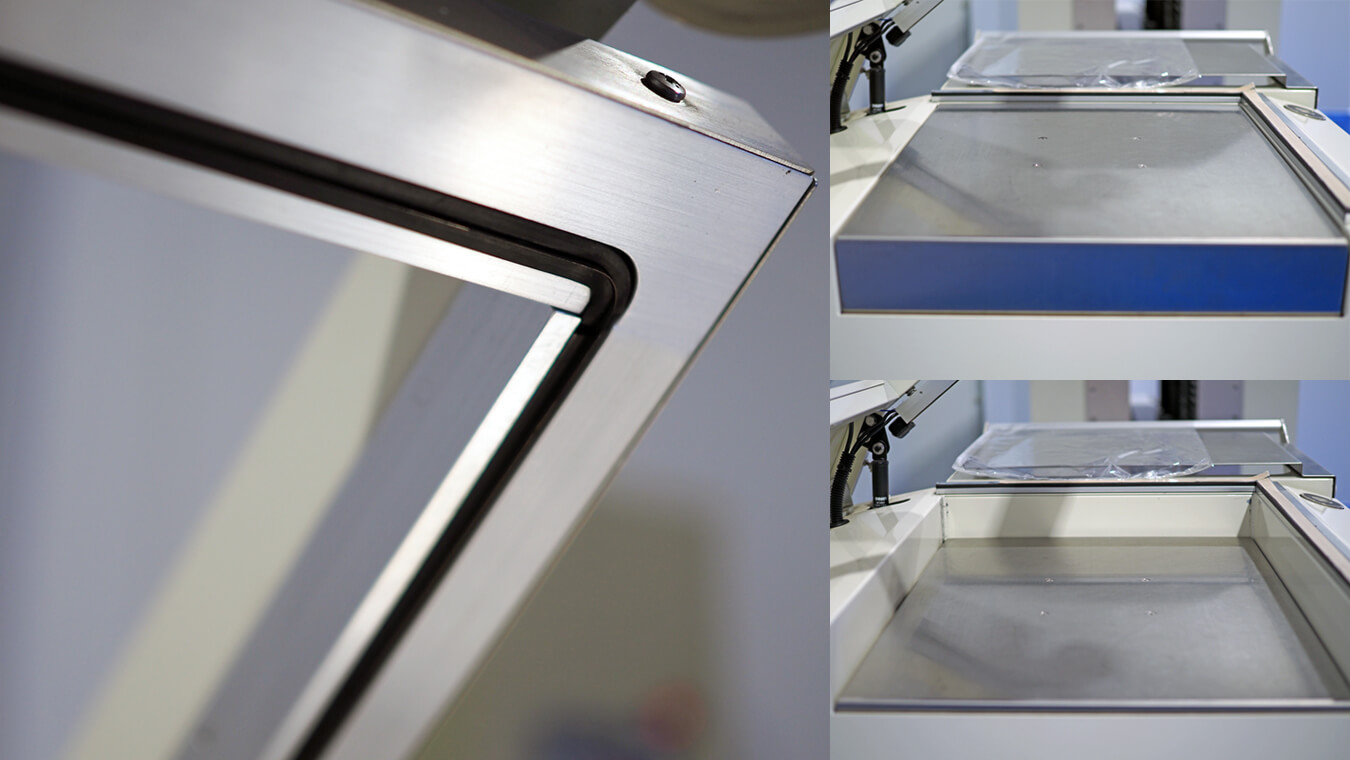

The cutter cuts around corners in a curve, preventing the forming of dog ears .
Films are shrunk by blowing hot air onto them from above, below, left and right, creating a tornado effect , for a beautiful finish.

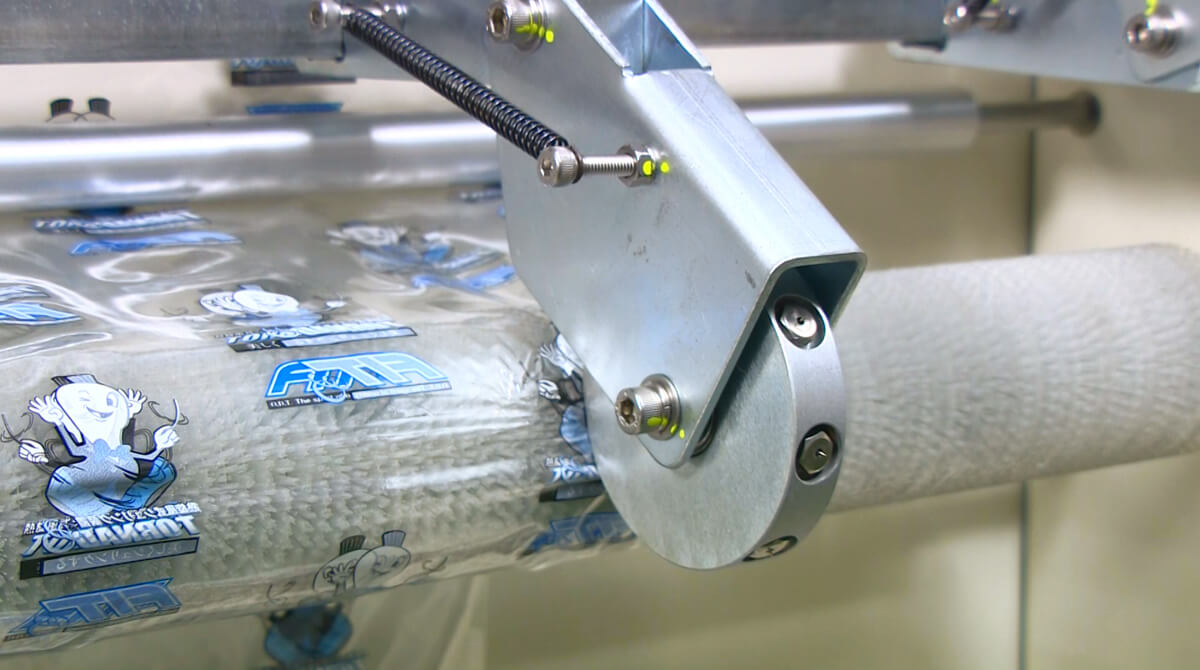

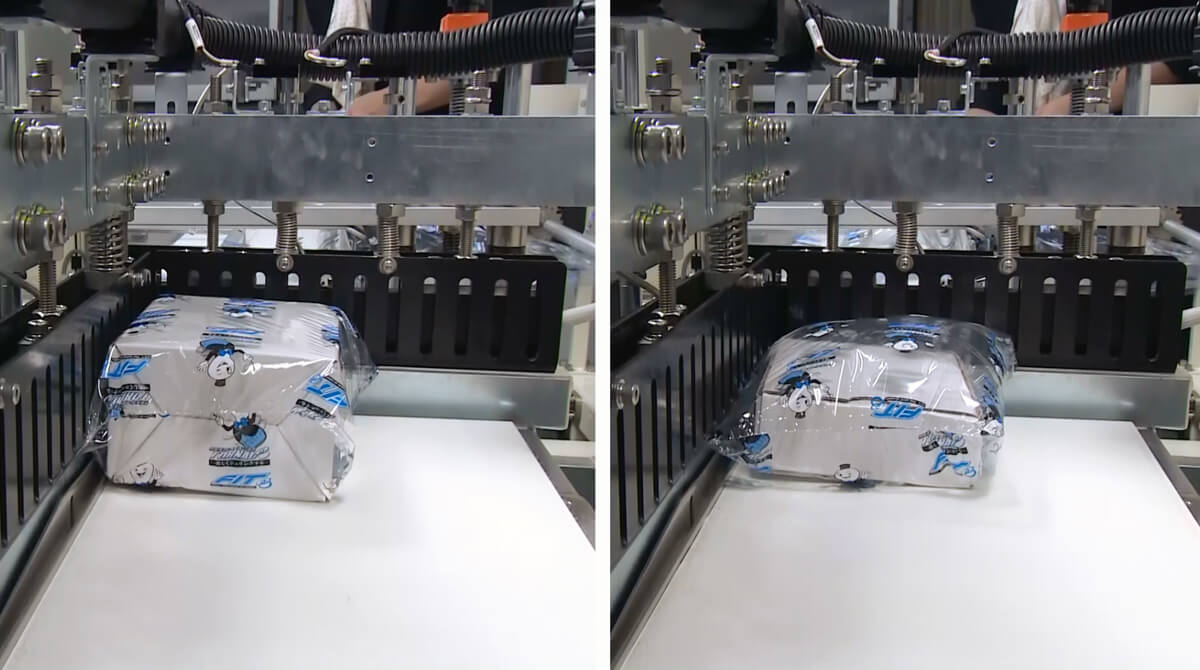

Needle positions can be adjusted easily to suit the type of container. It can be adapted to all kinds of products.

Easy and high operability

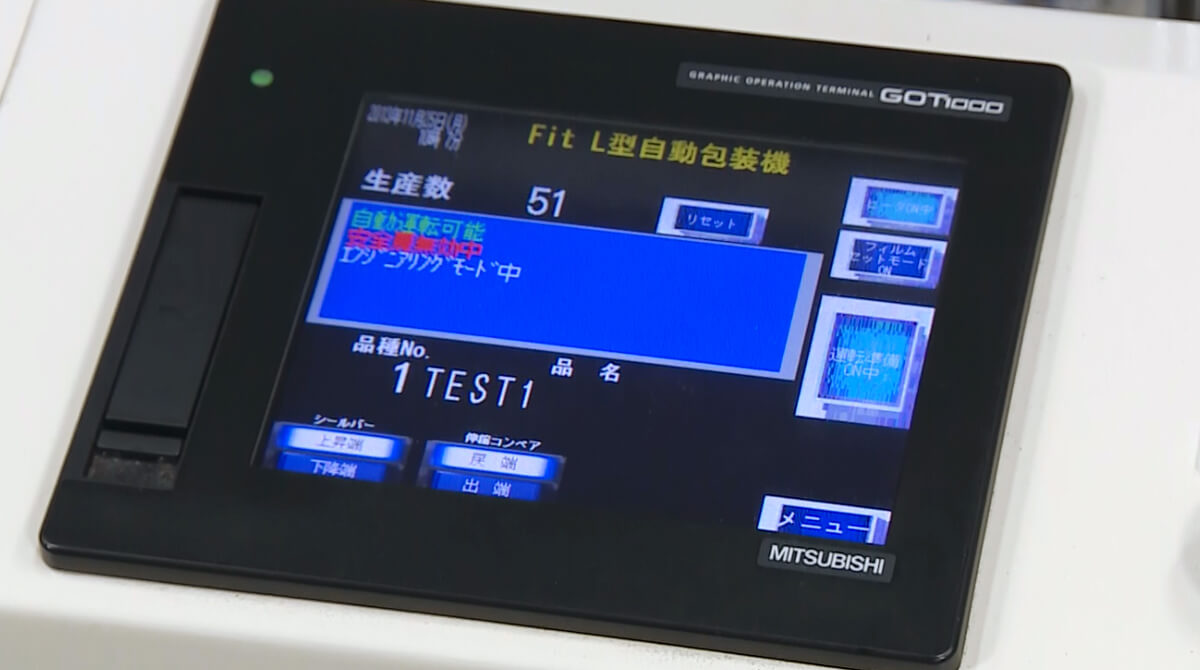

Easy operation using a touch panel.

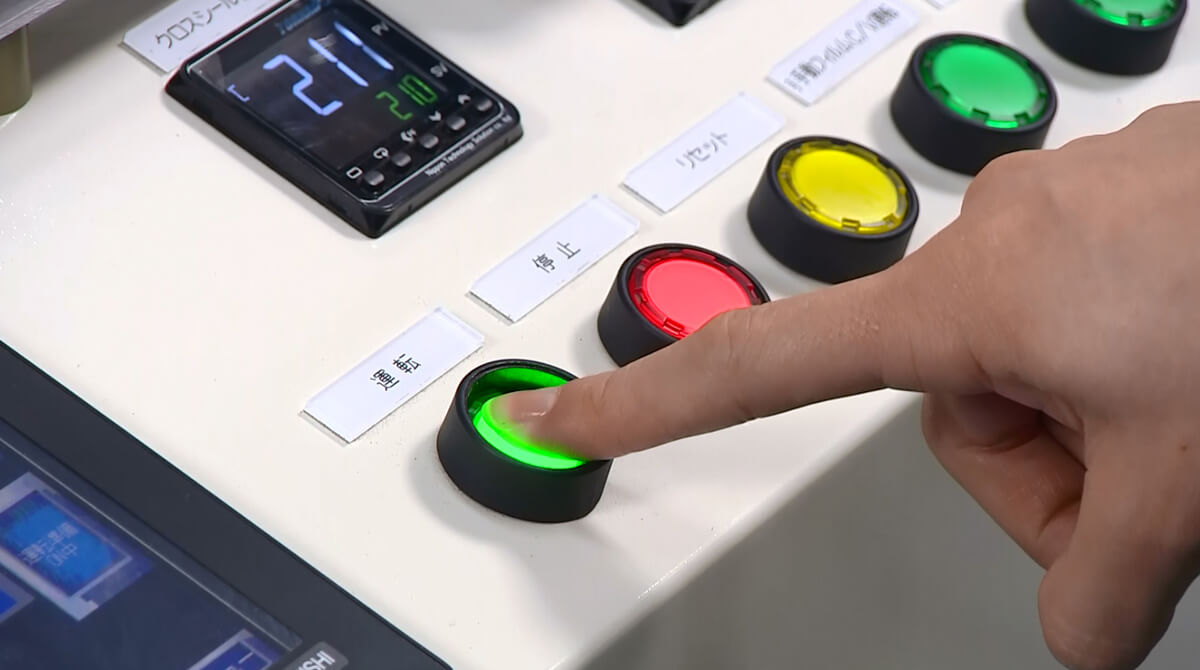

Starts easily with the press of a button.
The melt cutting position can be adjusted to suit the height of the product .

Easy to deploy

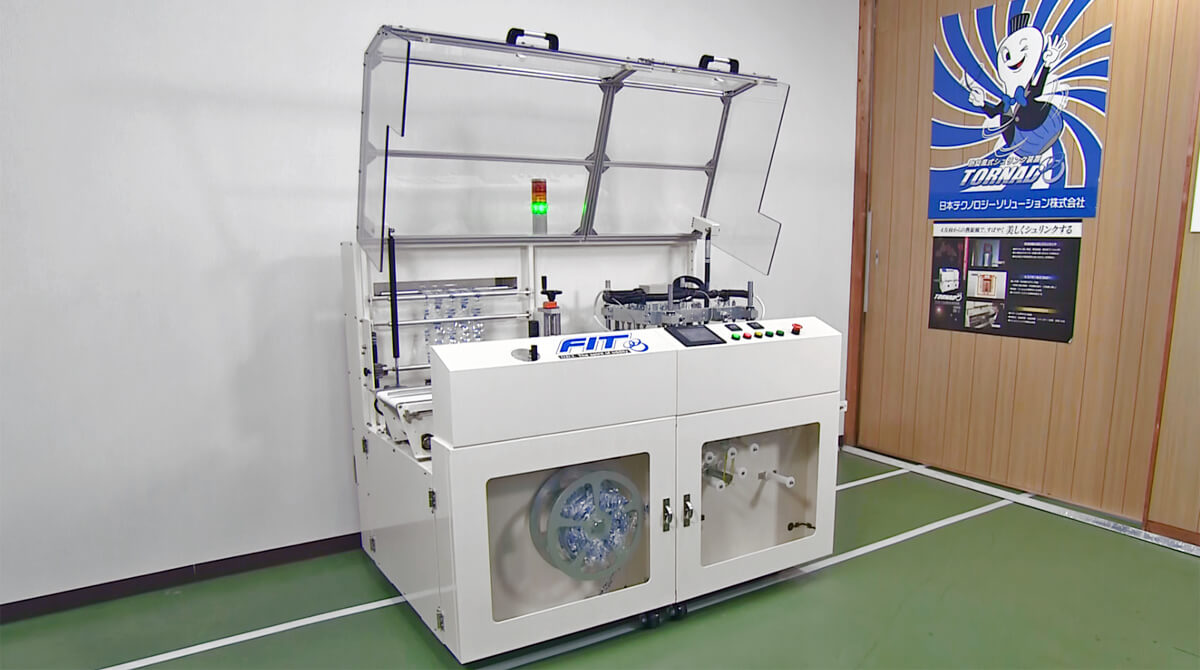

Compact design allowing it to be installed anywhere.
Easy maintenance.

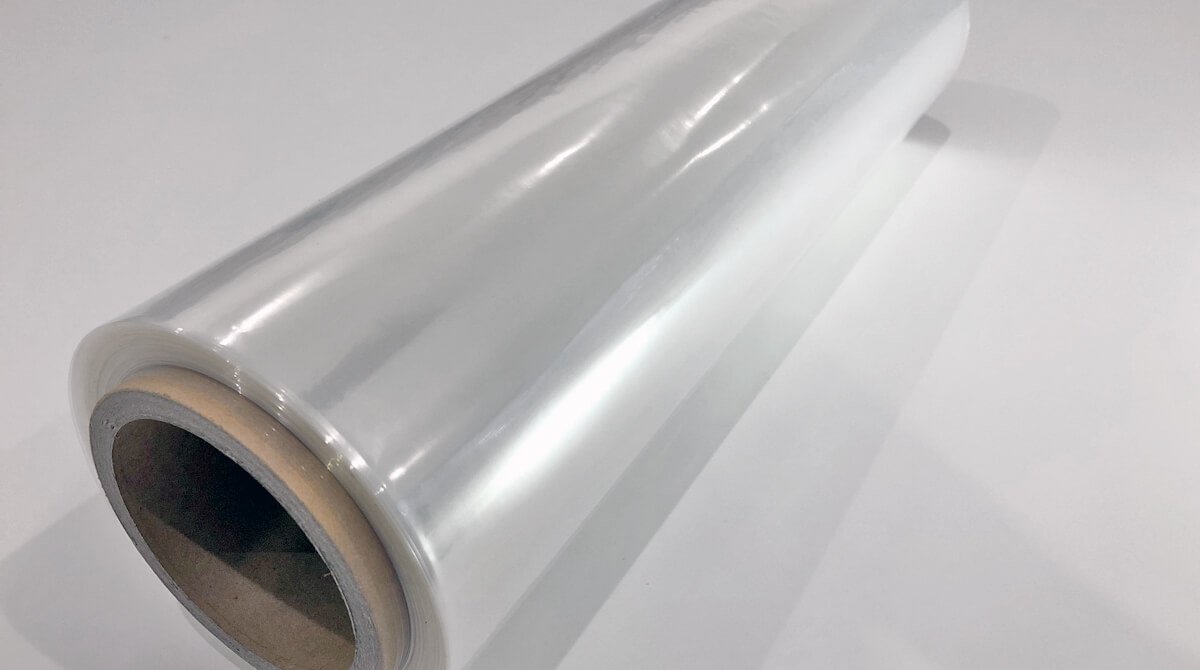

Rolled film eliminates the need for different films for different products, cutting material costs and shortening lead times.

SOLUTION

A shrink packaging revolution in L-shaped packaging. For more attractive packaging.

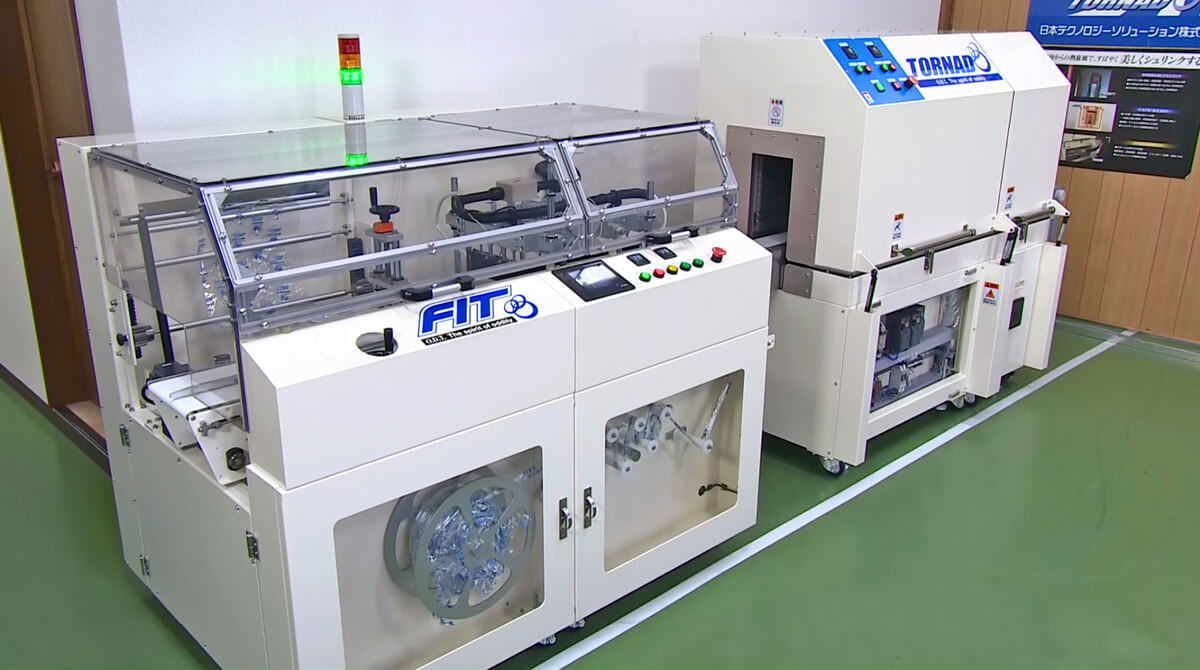

Achieves a beautiful finish by using it in combination with TORNADO®, a shrink machine that relies on the blowing of hot air.

SPEC

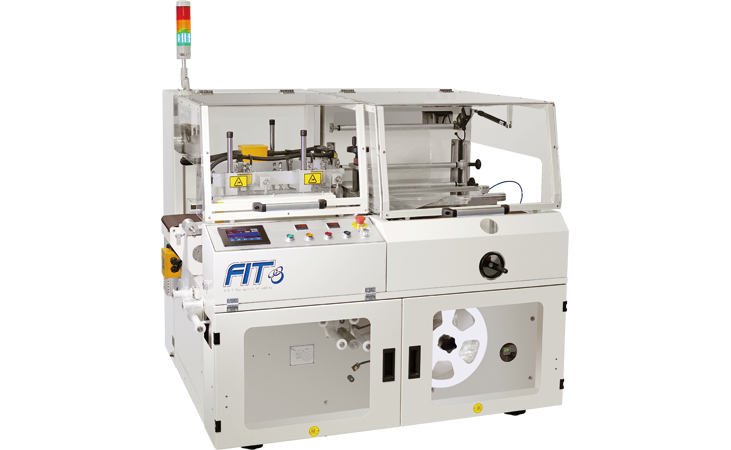

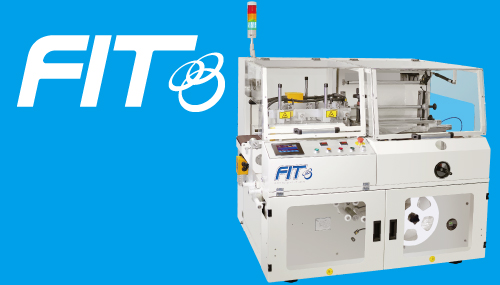

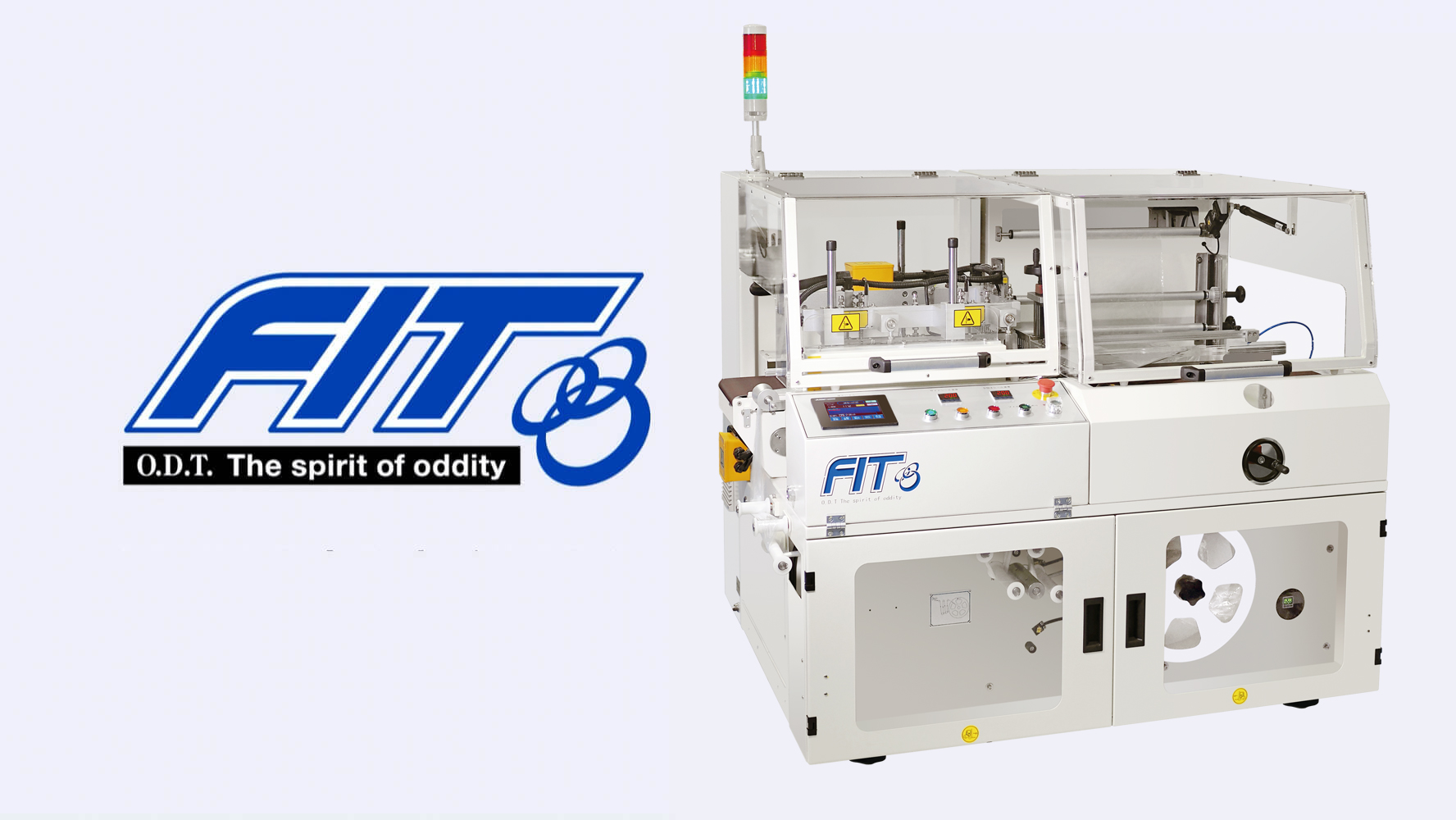

Overall packaging machine,Special-L FIT

Special-L FIT

Power source and voltage	Three phase, 200 V, 50/60 Hz, 20 A
Capacity	3.0 kW
High pressure air	Over 0.59 MPa, 250 NI/min
Maximum packaging dimensions	50 – 400 (L), 50 – 280 (W), 2 – 80 (H)
Transport mechanism	Conveyor belt (10 – 30 m/min)
Material of the body	Body exterior – SPCC. Baked finish (2.5Y9/1)
Outline drawing	Special-L FIT Top view Front view Special-L FIT + TORNADO® Top view Front view

OPTION

Customers looking for equipment for micro-scale, high-variety production

Manually operated L-shaped packaging machine, FITS –S
The manually operated L-shaped packaging machine, FITS –S, is ideal for micro-scale, high-variety production.
It is compact and requires little space. Achieves beautiful shrink packaging when used in combination with TORNADO®, a shrink machine that relies on the blowing of hot air creating a tornado effect!
